After the overwhelming success of the Liquid Pro, the new Coollaboratory Liquid Ultra was developed. Of course the Liquid Ultra is also made of 100% metal, but it has an absolute new usability and offers an outstanding performance. Due to the paste-like texture the application is now very easy.
The Coollaboratory Liquid Ultra was optimized for highest performance and optimal usability. The thermal compound consists to 100% of metal, but can be applied very easy with a commercial brush. The processor (Heatspreader) should be cleaned thoroughly before apply the Liquid Ultra, in order to eliminate dirt, old thermal compound or fat.
VIDEOS ABOUT COOLLABORATORY LIQUID ULTRA
Depending on the size of the Heatspreader, three to four division lines of Liquid Ultra should be applied centrically on the Heatspreader. Then the Liquid Ultra should be disposed slowly and without pressure on the Heatspreader. The less pressure is used when elapsing, the easier the Liquid Ultra can be applied. The Liquid Ultra has a pasty form, whereby the application goes very fast. Please pay attention to coat also the edges of the Heatspreaders. Therefore always use the same brush side. It is usually not necessary to apply more Liquid Ultra again for a commercial processor.
The application is managed within 30-60 seconds on average. In the following the application is represented in a short photo distance:
HOW TO USE COOLLABORATORY LIQUID ULTRA
Please notice that the Liquid Ultra is not suitable with the usage of aluminum surfaces.

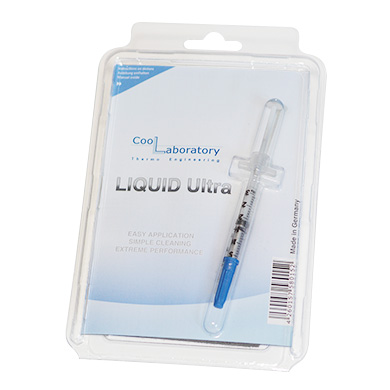

The Coollaboratory Liquid Ultra is available in retail package which includes beside the Liquid Ultra, a printed manual, a brush and a cleaning set (with cleaning tissues and metal grinding pad).
AWARDS OF COOLLABORATORY LIQUID ULTRA
|Manual||English | German | French | Japanese|
|Safety data sheet||English | German|
|Declaration of conformity||English | German|
